Memory Stage (MEM)

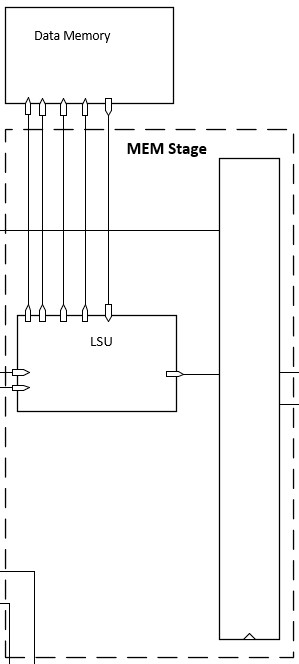

The Memory Stage (toast_MEM_stage) handles all data memory loads and stores and serves as the Load Store Unit. The data memory is byte-addressable, however misaligned loads and stores are not allowed.

Loads:

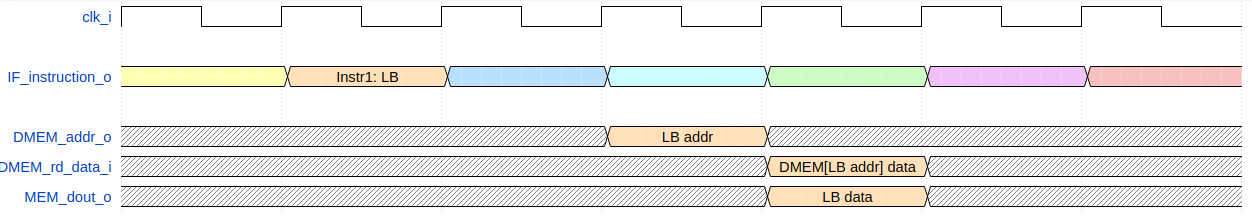

The above timing diagram shows the process of writing data to memory. In the second clock cycle, a LB instruction is fetched. The memory address to be accessed is computed in the fourth cycle by the EX stage, and placed on DMEM_addr_o. On the next cycle, the memory places the data corresponding to the address on DMEM_rd_data_i, and the masked data is placed on MEM_dout_o on the same cycle.

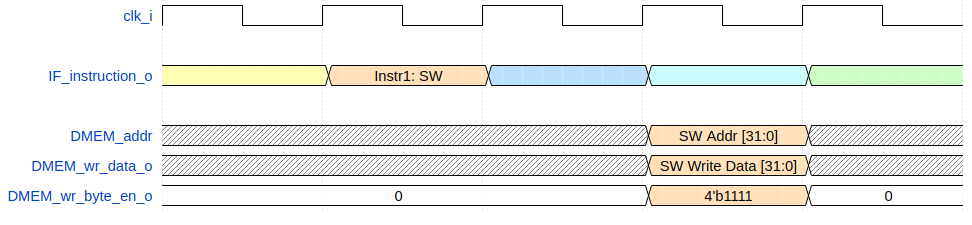

Stores:
